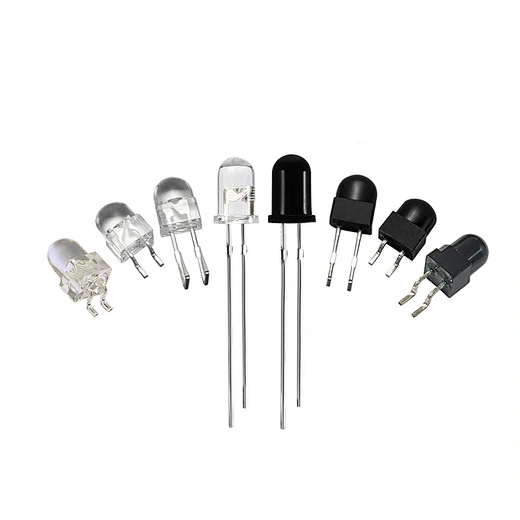

型号(Model Number): XA 850 emitter 产品名称(Product name): 5mm圆头方座850nm红外发射管 正向电流(Forward Current):100mA 正向电压(Forward Voltage): If=50mA Min:1.1V Typ:1.2V If=100mA Min:1.2V Typ:1.5V 辐射强度(Radiant Intensity): If=50mA Min:90mW/Sr Typ:170mW/Sr If=100mA Min:150mW/Sr Typ:270mW/Sr 峰值波长(Peak Wavelength): Typ:850nm | 型号(Model Number): XA 850 receiver 产品名称(Product name): 5mm圆头方座850nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:700nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:850nm 光电流(Reverse Light Current): Min:25uA Max:45uA 上升/下降时间(Rise Time/Fall Time): Typ:45/45nS Max:50/50nS |
型号(Model Number):XA563JC-T4A-DZ 产品名称(Product name): 5mm椭圆方座940nm红外发射管 正向电流(Forward Current):100mA 正向电压(Forward Voltage): If=50mA Min:1.1V Typ:1.2V If=100mA Min:1.2V Typ:1.5V 辐射强度(Radiant Intensity): If=100mA Min:30mW/Sr Typ:35mW/Sr 峰值波长(Peak Wavelength): Typ:940nm | 型号(Model Number):XA56APD-K60-DZ 产品名称(Product name): 5mm椭圆方座940nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:860nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:940nm 光电流(Reverse Light Current): Min:10uA Max:20uA 上升/下降时间(Rise Time/Fall Time): Typ:45/45nS Max:50/50nS |
型号(Model Number):XA504JC-E0J1 产品名称(Product name): 5mm圆头850nm红外发射管 正向电流(Forward Current): 100mA 正向电压(Forward Voltage): If=20mA Typ:1.4V Max:1.65V 辐射强度(Radiant Intensity): If=20mA Min:90mW/Sr Typ:110mW/Sr 峰值波长(Peak Wavelength): Typ:850nm | 型号(Model Number):XA503PD-60J1 产品名称(Product name): 5mm圆头850nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:700nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:850nm 光电流(Reverse Light Current): Min:10uA Typ:25uA 上升/下降时间(Rise Time/Fall Time): Typ:50/50nS |
型号(Model Number):XA503JC-T2A 产品名称(Product name): 5mm圆头940nm红外发射管 正向电流(Forward Current):100mA 正向电压(Forward Voltage): If=20mA Typ:1.2V Max:1.4V If=100mA Min:1.4V Typ:1.8V 辐射强度(Radiant Intensity): If=20mA Min:20mW/Sr Typ:28mW/Sr If=100mA Typ:85mW/Sr 峰值波长(Peak Wavelength): Typ:940nm | 型号(Model Number): XA503PD-K60 产品名称(Product name): 5mm圆头940nm红外接收管 波长范围(Range Of Spectral Bandwidth): Min:860nm Max:1000nm 峰值波长(Wavelength Of Peak Sensitivity): Typ:940nm 光电流(Reverse Light Current): Min:20uA Typ:30uA 上升/下降时间(Rise Time/Fall Time): Typ:5/5nS |
