| 型号 (P/N) | 发光颜色 (Emitted Color) | 胶体颜色 (Resin Color) | 发光角度 (Viewing Angle) | 测试电流 IF(mA) Test | 正向电压 (Forward voltage) | 波段 (Dominant wavelength) | 发光强度 (Luminous intensity) |

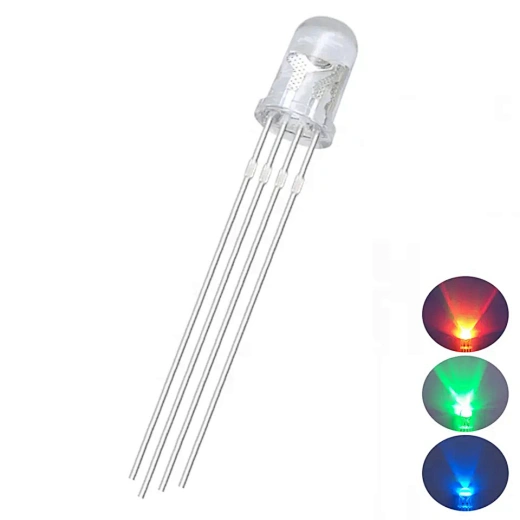

| XA504RGBC-9TA9AA-BA | 红光 (Red) | 无色透明 (Water Clear) | 30° | 20mA | 1.8-2.4V | 620-630nm | 2200-6500mcd |
| 绿光 (Green) | 2.8-3.4V | 515-525nm | 8500-18000mcd | ||||
| 蓝光 (Blue) | 2.8-3.4V | 465-475nm | 1700-5000mcd |
