产品名称(Product name):

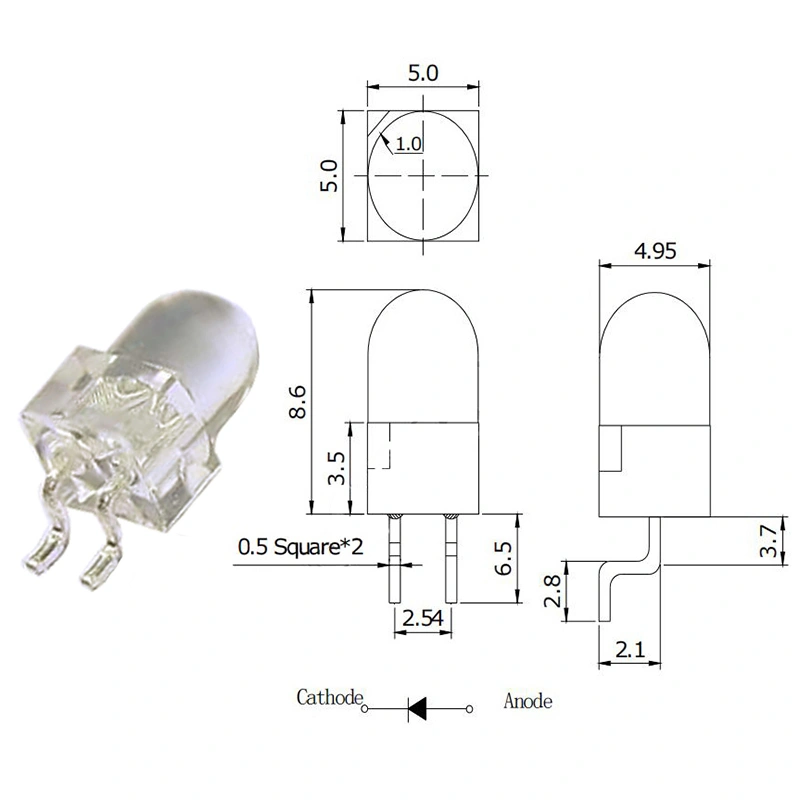

5mm圆头方座850nm红外发射管
正向电流(Forward Current):100mA
正向电压(Forward Voltage):
If=50mA Min:1.1V Typ:1.2V
If=100mA Min:1.2V Typ:1.5V
辐射强度(Radiant Intensity):
If=50mA Min:90mW/Sr Typ:170mW/Sr
If=100mA Min:150mW/Sr Typ:270mW/Sr
峰值波长(Peak Wavelength):
Typ:850nm
